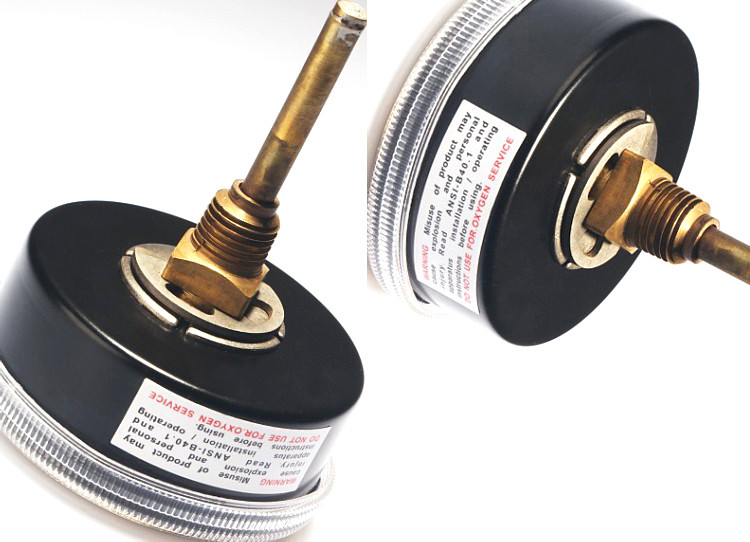

Tridicator-boiler gauge WHT-1A

Tridicator-boiler gauge WHT-1A

Tridicator-boiler gauge WHT-1A
Tridicator-boiler gauge WHT-1ATridicator-boiler gauge WHT-1ATridicator-boiler gauge WHT-1A
CategoriesTridicator-boiler gauge
BrandQualityWell
ModelWHT-1A
ConnectionBack Connection
BezelNo
CaseBlack steel case
Thread1/4”NPT
Size2.5”(63mm)
Range0-160CF& 0-100PSI/FeetH2O  (customized)
AccuracyTemperature:±2% ; pressure ±3%
LensPolycarbonate,screw-on
StemBrass,0.25”(6.35mm) diameter
Terms of PaymentL/C, T/T, Paypal
Update TimeNov 27,2024
Detail Information







Type Tridicator Boiler Gauge
Connection Back connection
Bezel No
Case Black steel case
Thread 1/4"NPT

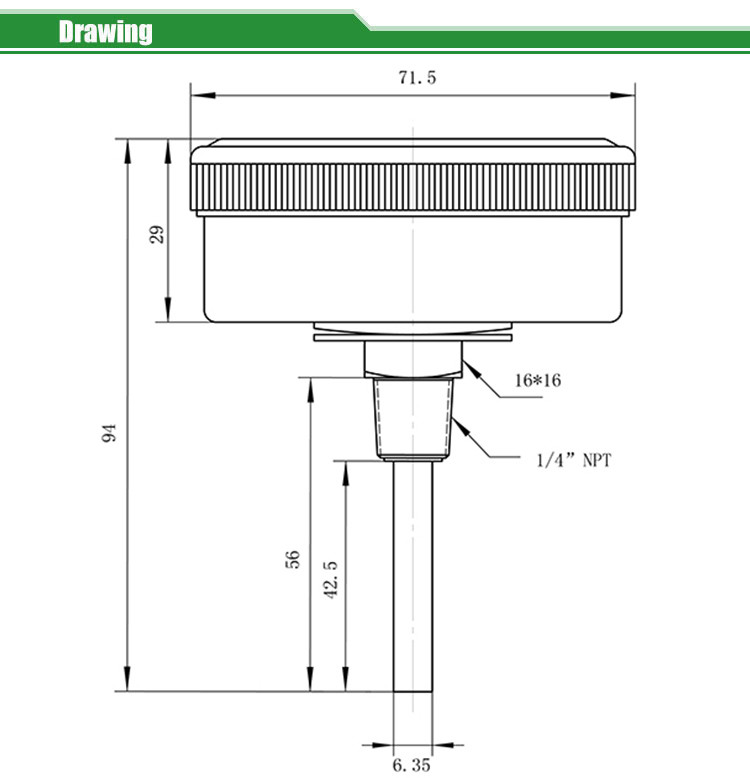

Dial Size 2.5"(63mm)
Range 0~160 C/F & 0~100 PSI/FeetH2O (customized)
Accuracy         Temperature:±2% ; pressure ±3%
Lens Polycarbonate,screw-on
Stem Brass,0.25"(6.35mm) diameter
Stem Length
1.67"(42.5mm)
Enclosure Rating IP55
Field Pipeline,surface,industrial,oil,chemical,power station,marine,etc.
Certificate ISO9001:2015
MOQ 50 pieces
Warranty 1 year

 Tridicators-boiler gauge WHT-1ATridicators-boiler gauge WHT-1A

Tridicators aredesigned specifically for hot water heating systems, hot water boilers, poolsand any
application requiring a fast and accurate temperature indication.
